ZyWAN User Manual Configuration Examples

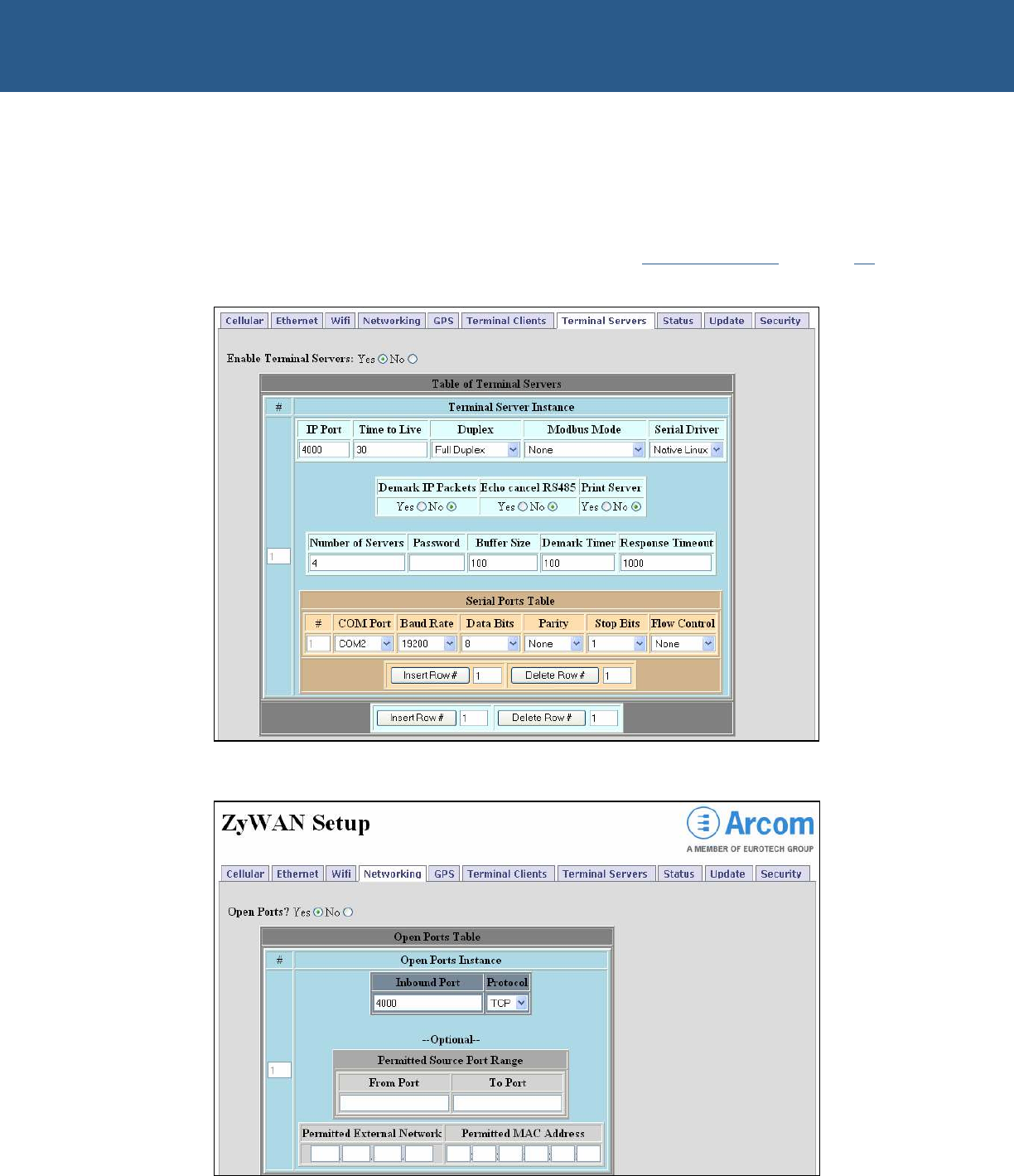

Terminal Server setup

This Terminal Server configuration uses “Full Duplex” mode, which allows full bi-

directional communication. This example also shows the use of COM2 (RS-232) at a

baud rate of 19,200, which should be set correctly for the application. If RS-485 is

needed (on an appropriate model of ZyWAN), use COM3 with ”Flow Control” set to

RTS/CTS and “Echo cancel RS485” set to Yes. See Terminal Servers on page 87 for

more details on other Terminal Server options.
